BJD96 Series Alarm Light Fittings (IIC, tD)


Description

noten umsonst herunterladen
  • Designed for explosive atmospheres Zone 1 and Zone 2;
  • Designed for combustible dust Zone 21 and Zone 22;
  • Designed for IIA, IIB and IIC groups explosive atmospheres;
  • Designed for temperature classifications T1~T6;
  • Designed for explosive hazardous locations such as oil refinery, storage, chemical, pharmaceuticals, military industries, etc tiptoi manager kostenlos herunterladen.
  • Used for signal alarm and indication;
  • LED lamp is with low power consumption, long service life and free maintenance.



yacht simulator kostenlos downloaden

Features

noten umsonst herunterladen

Enclosure is Die Casted of Aluminium Alloy with High Voltage Powder Coated Surface After Shot Blasting;

Impact Structure with Aesthetic Appearance;

Compund Explosion Protected Type Ensures the Reliable Explosion Protection Property;

Transparent Cover is Injected of Engineering Plastic with Good Impact Resistance;

Exposed Fasteners are of Stainless Steel with Good Corrosion Resistance Property;

Signal Colors: Red, Yellow, Blue, Green;

Special Designed Seal Structure Ensures Ingress Protection to Reach IP66;

Different Mounting Types are Suitable for Different Sites;

Steel Pipe or Cable Wiring tiptoi manager kostenlos herunterladen.

yacht simulator kostenlos downloaden

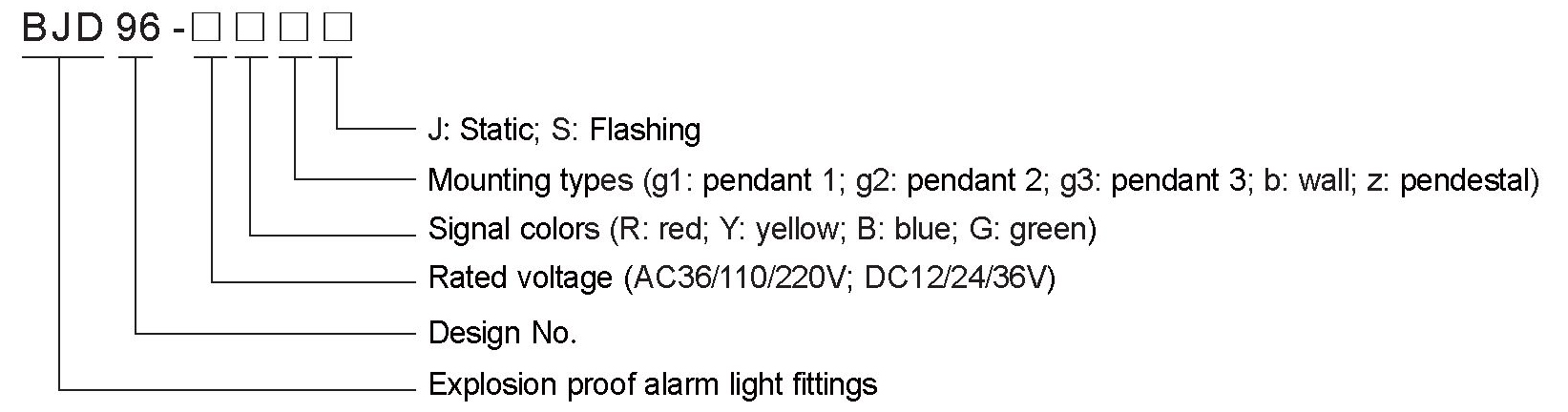

Ordering References

noten umsonst herunterladen

S Flashing: the Beacons Will Turn Clockwise or Anticlockwise After Lamp On;

J Static: on and Off Alternately After Lamp Static and the Working;

The Working Model Can be Made as Per Request, Please Indicate When Have Request;

Please Indicate When Have Special Request tiptoi manager kostenlos herunterladen.

For Example: If Need Static Type BJD96 Alarm Light Fitting, Voltage AC220V, Yellow, Pendestal, the Model Shall be BJD96-Ac220Yzj.

yacht simulator kostenlos downloaden

Technical Parameters

noten umsonst herunterladen

Compliance with: GB 3836.1, GB 3836.2, GB 3836.3, GB 12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC60079-7, IEC 61241-0,

IEC 61241-1

Explosion Protection: Ex d e IIC T6 Gb/Ex tD A21 IP66 T80℃

Rated Voltage:AC 36/110/220V,  50/60Hz;DC 12/24/36V

Lamp:LED;

Rated Power:≤2.5W;

Strobe Frequency: 150 times/min;

Ingress Protection: IP66;

Corrosion Resistance: WF1;

Cable Entries: G1/2″,G3/4″(pendant 3);

Cable Outer Diameters:Φ6mm~Φ10mm,Φ9mm~Φ14mm (pendant 3) tiptoi manager kostenlos herunterladen.
